WAVLINK Dual Monitor USB C Dock, 10-in-1 Docking Station Wireless USB C Adapter with 4K&1080P HDMI, 100W Charging, Gigabit Ethernet for Windows Wireless Display(Dell/HP/Lenovo) & Wired for Mac

<b>WAVLINK Dual Monitor USB C Dock, 10-in-1 Docking Station Wireless USB C Adapter with 4K&amp;1080P HDMI, 100W Charging, Gigabit Ethernet for Windows Wireless Display(Dell/HP/Lenovo) &amp; Wired for Mac</b><br>Support&nbsp;Hybrid&nbsp;Two&nbsp;Working&nbsp;modes:&nbsp;WiFi&nbsp;mode&nbsp;and&nbsp;USB&nbsp;mode.<br>Support&nbsp;4K@30Hz&nbsp;and&nbsp;1080P@60Hz&nbsp;video&nbsp;output.<br>Use&nbsp;WiFi6&nbsp;IEEE802.11&nbsp;AX&nbsp;Technology&nbsp;for&nbsp;seamless&nbsp;WiFi&nbsp;Mode.<br>USB-A&nbsp;3.0&nbsp;downstream&nbsp;ports&nbsp;transfer&nbsp;speed&nbsp;up&nbsp;to&nbsp;5Gbps&nbsp;and&nbsp;is&nbsp;backward&nbsp;compatible&nbsp;with&nbsp;USB&nbsp;2.0/1.1.<br>USB-C&nbsp;upstream&nbsp;port&nbsp;provides&nbsp;100W&nbsp;power&nbsp;supply&nbsp;and&nbsp;USB&nbsp;wired&nbsp;expansion&nbsp;for&nbsp;your&nbsp;computer.<br>USB-C&nbsp;downstream&nbsp;provides&nbsp;5Gbps&nbsp;data&nbsp;transfer,&nbsp;and&nbsp;BC&nbsp;1.2&nbsp;fast&nbsp;charging.<br>4-Pole&nbsp;Phone&nbsp;Jack&nbsp;provides&nbsp;combined&nbsp;audio&nbsp;output&nbsp;and&nbsp;input&nbsp;from&nbsp;the&nbsp;headphone&nbsp;and&nbsp;microphone.<br>1000Mbps&nbsp;RJ45&nbsp;Ethernet&nbsp;port&nbsp;supports&nbsp;Internet&nbsp;connection&nbsp;in&nbsp;WiFi&nbsp;mode&nbsp;or&nbsp;USB&nbsp;mode.<br><br><b>【Warm Tips】:</b><br>1.Please <b>ensure your laptop's USB-C port supports video output (DisplayPort Alt Mode) and charging</b> (Power Delivery) to fully utilize all features of this hub.<br>2.<b>Wireless connection</b> for display is <b>exclusively available for Windows</b> systems. <b>macOS</b> systems <b>require a wired connection</b> for display output.<br>3.<b>Driver</b> installation <b>is required</b> before first use. <b>For Windows wireless mode</b>, an additional <b>application download is necessary</b>.<br><br><b>Systems/ Devices Compatibility:</b><br>- Microsoft Windows 10 or above; Mac OS<br>﹘CPU: i5 or above<br>- Memory: 8GB or above<br>- WiFi : 802.11AX 2×2 or above<br>- USB-C supports Power Delivery 3.0 and above<br><br><b>How to Confirm if the Type-C Port of Your Laptop Supports Vido Output and Charging?</b><br>Step 1: Please check the model of your laptop, it should be on the back of the label;<br>Step 2: Search “brand + the model number of the device + manual” in Google, for example: “asus ux435 manual”;<br>Step 3: Check the manual and navigate to the view and check the type-c specification, if it states it supports power delivery which means it supports charging. If it states the type-c port supports display which means it could support video output. If the specification states bandwidth the type-c port supports only, which means the type-c port might not support video output and charging. You could also contact the manufacturer to confirm that.<br><br><b>Multiple Display Resolution (Max. Resolution):</b><br><u>【 *Notice: Please make sure the type-C port of your host supports video output.】</u><br><b>- USB Mode:</b><br><u>Single Display:</u> 1xHDMI 4K@30Hz Or 1xHDMI 1920*1080P@60Hz<br><u>Dual Display:</u> 1xHDMI 4K@30Hz + 1xHDMI 1920*1080P@60Hz<br><br><b>- WiFi Mode</b><br><u>Single Display:</u> 1xHDMI 4K@30Hz Or 1xHDMI 1920*1080P@60Hz<br><u>Dual Display:</u> 1xHDMI 4K@30Hz + 1xHDMI 1920*1080P@60Hz<br><br><b>Specification:</b><br>1.Model: WL-WD76PD1<br>2.Ports:<br>- Front: 1 x USB-C(5Gbps/7.5W), 1 x phone jack, 1 x USB-A (5Gbps);<br>- Rear: 1x RJ45(10/100/1000Mbps), 3 x USB-A (5Gbps), 1 x 4K HDMI, 1×1080P HDMI，1 x USB-C Host(5G/ PD100W),1 x 20V DC IN port.<br>3.Unit Size: 19.4x10.5x4.7cm/7.64x4.13x1.85in (LxWxH) The total height when the antenna is erected：4.25inch<br>4.USB-C to C/ HDMI Cable Length: 100cm/39.4in<br>5.Unit Weight: 471g/16.6oz<br>6.Material: PC+ABS plastic<br>7.LED: USB MODE: Blue; WIFI MODE: Green.<br><br><b>In the Box:</b><br>-1×Wireless USB Hybrid Display Docking Station<br>-1×USB-C to USB-C Cable<br>-1×HDMI Cable<br>-1×DC 20V/6.5A 130W Power Adapter<br>-1×Quick Start Guide<br><br><b>USB-C Devices Compatibility List (Partial):</b><br><u>[ *Note: Please check the compatibility list below before purchasing. If your device is not on the list, please let us know and we will be glad to help you check with it.]</u><br><br><b>【Wireless Connection Mode:】</b><br><u>Microsoft Windows:</u> Windows 10 or later<br><br><b>【Wired Connection Mode (via USB-C):】</b><br><u>Microsoft Windows:</u> Windows 11, 10, 8.1, 7<br><u>macOS:</u> macOS 10.10 (Yosemite) or later. Compatible with both Intel-based Macs and Apple Silicon Macs (M1, M2, M3, M4 series) including MacBook Air and MacBook Pro models.<br><u>Android:</u> Android 7.1 or later<br><u>Linux:</u> Ubuntu 24.04, 23.04, 22.04, 20.04<br><br>

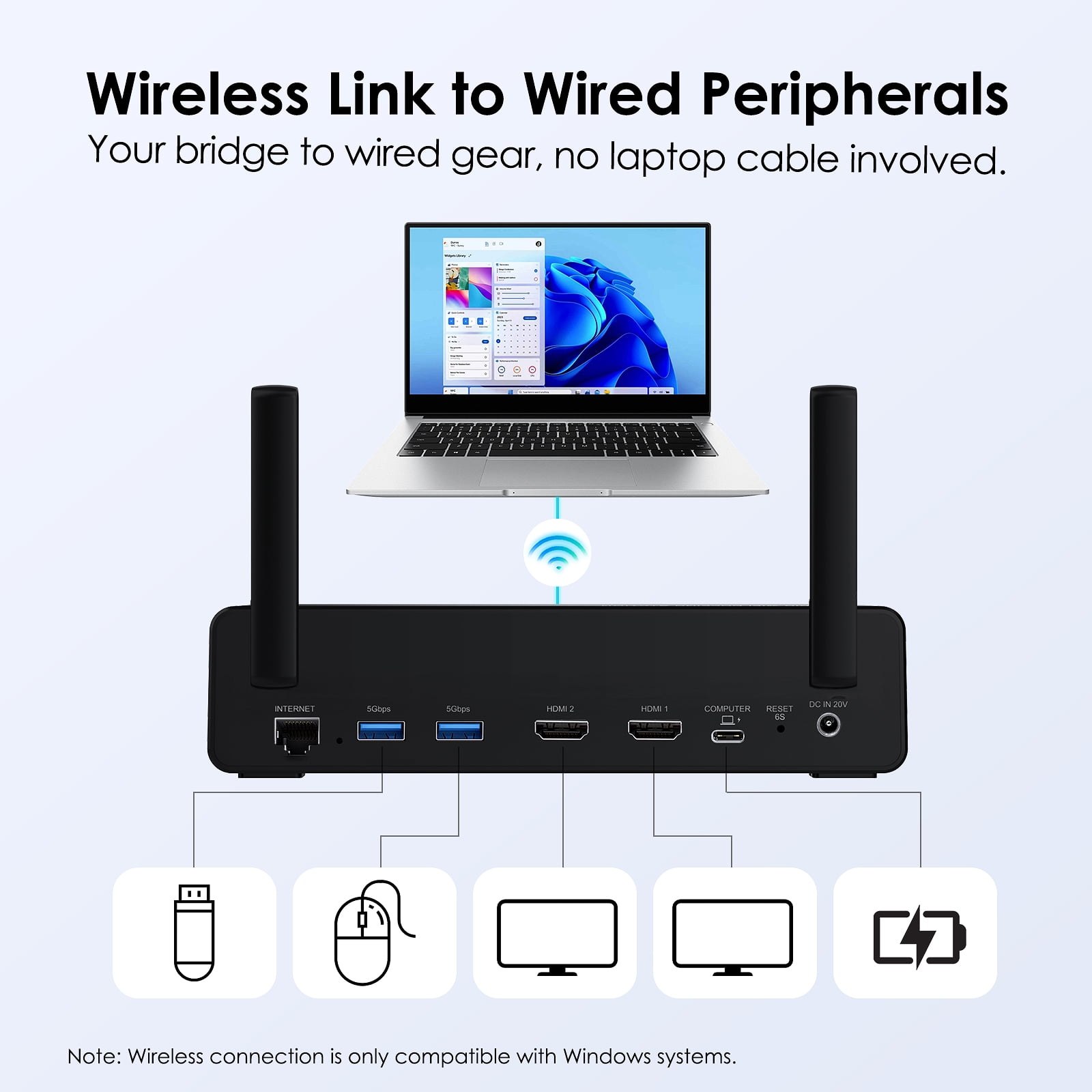

• ‌【Wireless USB Dock】: This Wavlink docking station support wireless connects your Windows systems notebook without the direct USB-C cable link. Functioning like an advanced usb c hub but cable-free to the laptop, it helps you achieve a organized workspace.
• 【Wireless Dual Display for Windows】: This docking station dual monitor setup lets you drive two external screens via HDMI without a video cable to your laptop(Driver & App required): achieve single 4K@30Hz display or 1080p@60Hz display, or run both simultaneously (4K@30Hz + 1080p@60Hz).

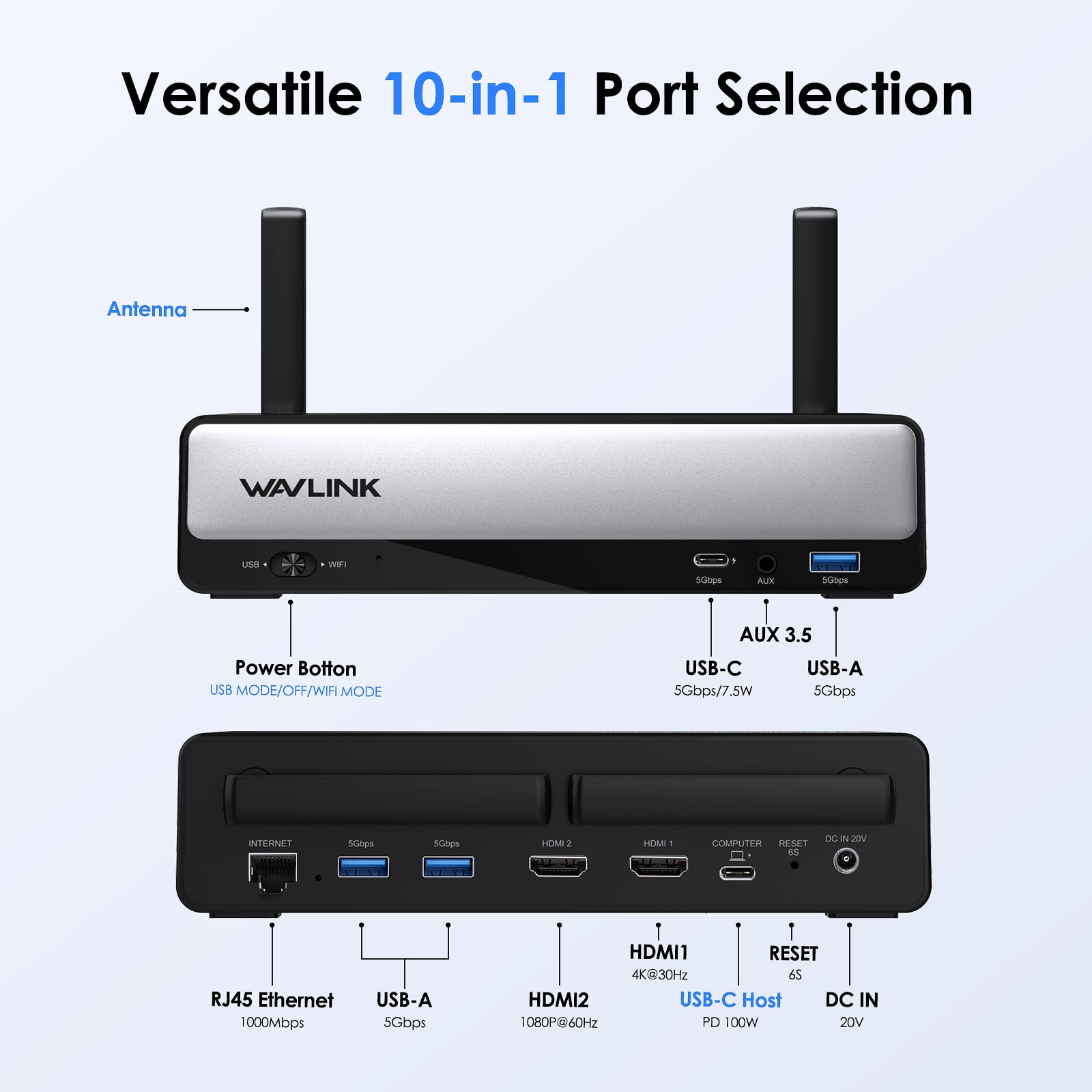

• 【10-in-1 Wired Connectivity】: Using this versatile usb c docking station to expands your laptop connectivity with 10 essential ports: 1×USB-C Host(PD 100W), 1x HDMI (4K@30Hz Max), 1x HDMI (1080p@60Hz Max), 3x USB-A (5Gbps), 1x USB-C(5Gbps, 7.5W), 1x Gigabit Ethernet, 1x 20V DC IN, 1x Audio Jack.
• 【Versatile Wireless Use Cases】: Leverage the unique wireless convenience (Windows systems only) of this laptop docking station in various settings: Make Effortless Presentations in meeting rooms by connecting instantly.  Enjoy Enhanced Desk Mobility for minor laptop position adjustments without unplugging.
• 【Important Notes】: Compatible with Windows laptops (like Dell, HP, Lenovo models) that USB-C ports support DisplayPort Alt Mode (DP Alt Mode) and Power Delivery (PD). The wireless display function is ONLY compatible with Windows systems (requires installing a specific Driver and Application to work). For macOS users, a wired USB-C connection through this usb c hub is necessary for display and data transfer.
